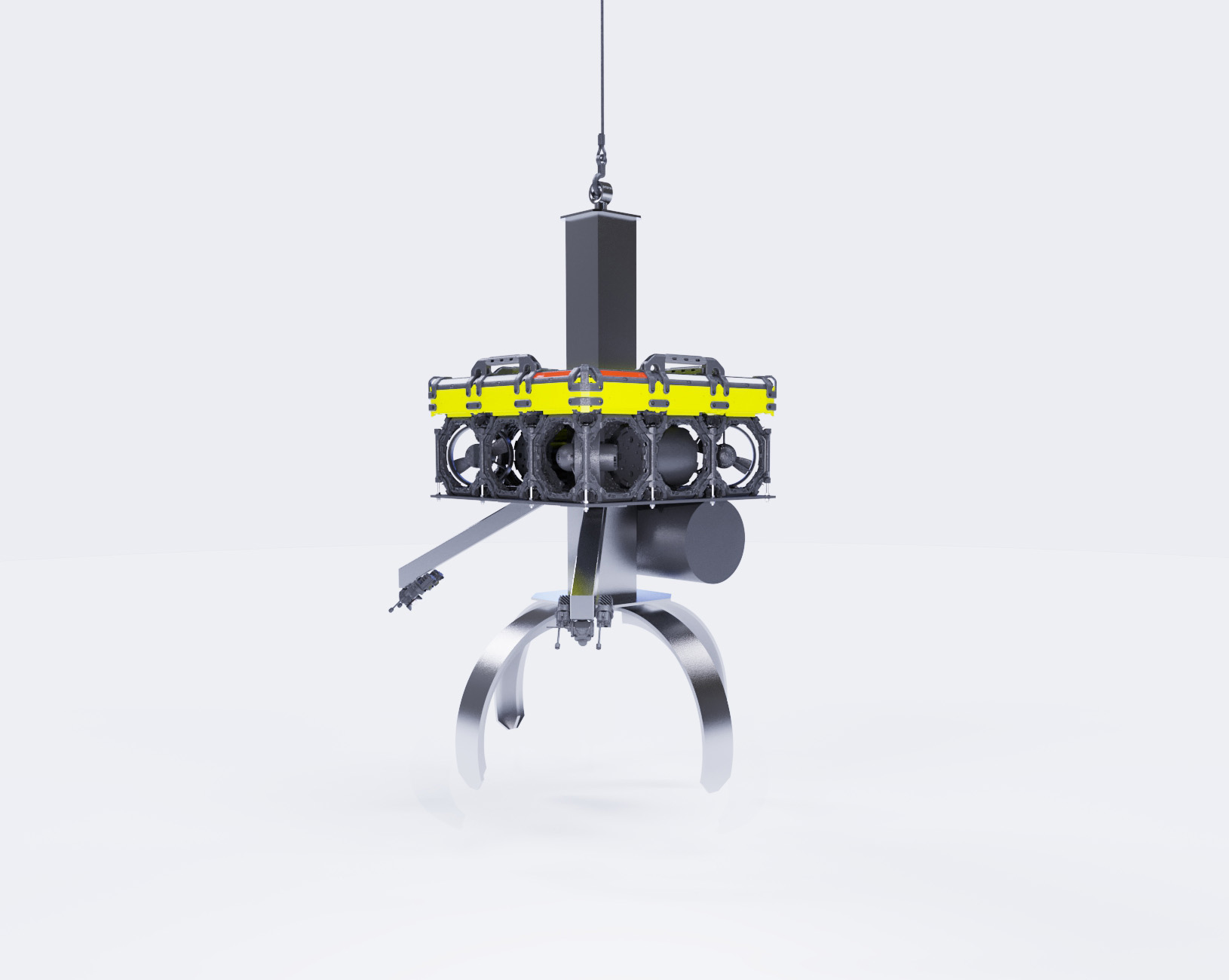

UTILITY BUDDY
Work-class ROV for heavy-duty and specialized tasks
em ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit
- Topic 1
- Topic 2
- Topic 3
- Topic 1
- Topic 2
- Topic 3
Technical Specifications
Dimensions (LxWxH)
1050 x 1050 x 630
mm
Depth Rating
1000
m
Weight in Air
130
kg
Input Voltage
400
VAC
Electrical Power
10000
W
Payload
–
kg
Thrust
H: 70 – V: 50
Kgf
Thruster Configuration
H: 4x 40kg – V: 4x 30kg
Power Supply Voltage
12 / 24 / 36 / 48
VDC
Aux Power Delivery
1000
W
Interfaces
100/1000BASE-T Ethernet / Serial
Sensors
Forward looking Sonar (OCULUS – MT1200d)
DVL with INS (NORTEK Nucleus1000)
2x Full HD Camera
4k HDR Camera (option)
IMU (X-Scene)
4x 50W LED Spots
Manipulator Capacity
2x REACH B-Series
TMS
manual / electrical (option)
Umbilical – Type 1
Hybrid COAX Cable
Length
500
m
Max. Data Rate
1
Gbit/s
Umbilical – Type 2
Hybrid Fiber Cable
Length
1000 (typical) – 5000 (max.)
m
Max. Data Rate
10
Gbit/s
Software
Backend: ROS 2 (open) / Frontend: FWR MISSION Control
Display
ROV Status
Multiple Videofeeds
Heading
Artificial Horizon
Depth
Clearance
INS-Position (option)
Functions
ROV Remote-Control
Adjusting Cameras
Video Recording
Switching Laser
Dimming Lights
Switching Payloads
This Setup includes
- Connection/ interface via media converter to Umbilical
(optional COAX/ Fiberoptic + Powerline) - Main control unit including 1 GB Ethernet PoE++ switch
(3x 1 GB Ethernet PoE++ ports free) - 8.0 kW power hub
- 6 thruster
- 360 degree camera system
(4x full HD cameras, 8x LED spotlights) - Operating and planning software MISSION CONTROL
- Surface control unit: integrated into a portable container module and includes power supply unit, wireless handheld PC with control unit and monitor
- Requires a 400 VAC power supply
- Hand-held tether management system
Can be equipped with
- Aufrüstbar mit …
