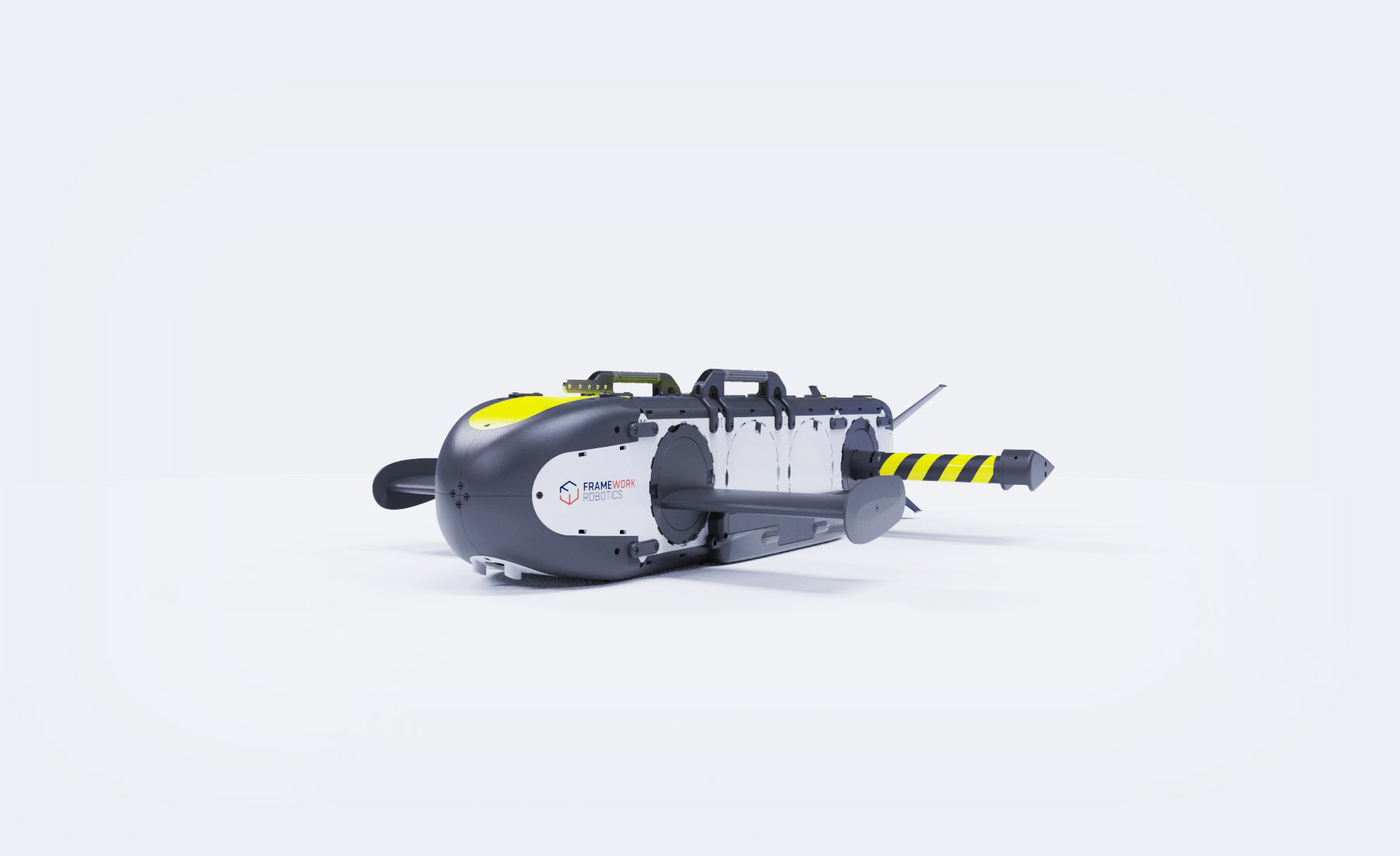

COMPANION
Modular system for extended missions and continuous data acquisition
em ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem ipsum dolor sit
- Topic 1
- Topic 2
- Topic 3
- Topic 1
- Topic 2
- Topic 3
Technical Specifications
Dimensions (LxWxH)
1980 x 1355 x 450
mm
Weight in Air
80
kg
Depth Rating Options
200 / 500 / 1000
m
Towing Speed
1 – 6
knots
Dive / Climb Speed
2 @4knots
m/s
Emergency Climb Speed
3 @4knots
m/s
Vertical Position Accuracy
+/- 0.1
m
Horizontal Position Accuracy
+/- 0.5
m
Roll Precision
+/- 0.5
degree
Max Slope – Terrain Following
25
degree
Space for Payload
20
l
Umbilical
Coax 0.6
km
Max. Bandwidth
1000
Mbit/s
Mission Control Max. Bandwidth Usage
20
Mbit/s
Interfaces
Ethernet
RS485
RS232
UART
CAN
AUX Voltage
5, 12, 24, 48
VDC
AUX Current
2, 5 @ 48 V
A
Backend
ROS II
Control
Flight mode (manual / auto neutral)
Hold (clearance depth [m])
Light / laser (on / off, dimming)
Display
Roll
pitch
heading
position
NMEA vessel
Rpm
power (r/s, W)
Depth (m)
Distance to seafloor (m)
Video / sonar feed
This Setup includes
- Connection/ interface via media converter to Umbilical
(optional COAX/ Fiberoptic + Powerline) - Main control unit including 1 GB Ethernet PoE++ switch
(3x 1 GB Ethernet PoE++ ports free) - 8.0 kW power hub
- 6 thruster
- 360 degree camera system
(4x full HD cameras, 8x LED spotlights) - Operating and planning software MISSION CONTROL
- Surface control unit: integrated into a portable container module and includes power supply unit, wireless handheld PC with control unit and monitor
- Requires a 400 VAC power supply
- Hand-held tether management system
Can be equipped with
- Aufrüstbar mit …
